BootStrap 템플릿으로 간단한 레이아웃 만들기

BootStrap 템플릿으로 간단한 레이아웃 만들기

2022. 10. 4. 19:13ㆍ프로젝트/Spring Boot

실습환경

Intellij(인텔리제이), Spring Boot

실습하기

프로젝트 만들기

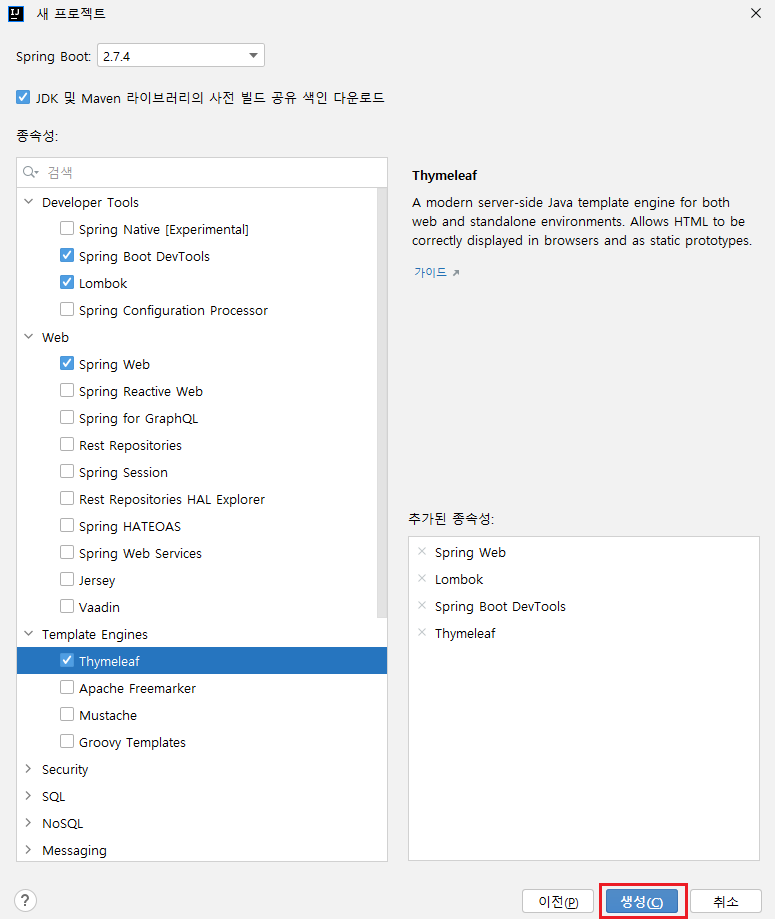

새 프로젝트를 만들고 Java 버전은 '8' 체크하고 다음(N) 클릭합니다.

의존성(Depency)

Spring Boot DevTools : 향상된 개발경험을 느낄 수 있게 해줍니다.
Lombok : Java기반 annotation 라이브러리를 사용하고, 편리하게 사용할 수 있게 해줍니다.
Spring Web : RESTful 포함하고, MVC 모델 사용가능하며 가장 기본적인 웹 지원 어플리케이션입니다.
Thymeleaf

index.html 파일 만들기

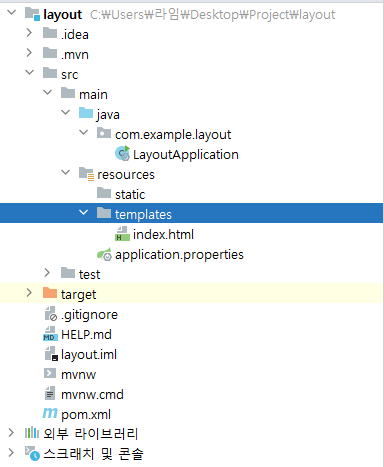

layout 프로젝트의 src → main → templates → index.html 파일을 만듭니다.

https://getbootstrap.com/docs/4.5/getting-started/introduction/

Introduction

Get started with Bootstrap, the world’s most popular framework for building responsive, mobile-first sites, with jsDelivr and a template starter page.

getbootstrap.com

<!doctype html>
<html>
    <head>
        <!-- Required meta tags -->
        <meta charset="utf-8">
        <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

        <!-- Bootstrap CSS -->
        <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/css/bootstrap.min.css" integrity="sha384-TX8t27EcRE3e/ihU7zmQxVncDAy5uIKz4rEkgIXeMed4M0jlfIDPvg6uqKI2xXr2" crossorigin="anonymous">

        <title>Hello, world!</title>
    </head>
    <body>
    <h1>Hello, world!</h1>

        <!-- Optional JavaScript -->
        <!-- jQuery, Popper.js, and Bootstrap JS -->
        <script src="https://code.jquery.com/jquery-3.5.1.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.1/dist/umd/popper.min.js" integrity="sha384-9/reFTGAW83EW2RDu2S0VKaIzap3H66lZH81PoYlFhbGU+6BZp6G7niu735Sk7lN" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/js/bootstrap.min.js" integrity="sha384-w1Q4orYjBQndcko6MimVbzY0tgp4pWB4lZ7lr30WKz0vr/aWKhXdBNmNb5D92v7s" crossorigin="anonymous"></script>
    </body>
</html>

위 링크를 따라 들어가 Starter template 아래 코드를 복사하여 index.html에 붙여넣습니다.

☆ 저는 일부 수정하였습니다

https://getbootstrap.com/docs/4.5/examples/starter-template/

Starter Template · Bootstrap

Bootstrap starter template Use this document as a way to quickly start any new project. All you get is this text and a mostly barebones HTML document.

getbootstrap.com

우클릭 후 "페이지 소스 보기" 클릭합니다.

복사(ctrl+c)를 합니다.

<!doctype html>
<html>
    <head>
        <!-- Required meta tags -->
        <meta charset="utf-8">
        <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

        <!-- Bootstrap CSS -->
        <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/css/bootstrap.min.css" integrity="sha384-TX8t27EcRE3e/ihU7zmQxVncDAy5uIKz4rEkgIXeMed4M0jlfIDPvg6uqKI2xXr2" crossorigin="anonymous">

        <title>Hello, world!</title>
    </head>
    <body>
    <nav class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
        <a class="navbar-brand" href="#">Navbar</a>
        <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarsExampleDefault" aria-controls="navbarsExampleDefault" aria-expanded="false" aria-label="Toggle navigation">
            <span class="navbar-toggler-icon"></span>
        </button>

        <div class="collapse navbar-collapse" id="navbarsExampleDefault">
            <ul class="navbar-nav mr-auto">
                <li class="nav-item active">
                    <a class="nav-link" href="#">Home <span class="sr-only">(current)</span></a>
                </li>
                <li class="nav-item">
                    <a class="nav-link" href="#">Link</a>
                </li>
                <li class="nav-item">
                    <a class="nav-link disabled" href="#" tabindex="-1" aria-disabled="true">Disabled</a>
                </li>
                <li class="nav-item dropdown">
                    <a class="nav-link dropdown-toggle" href="#" id="dropdown01" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">Dropdown</a>
                    <div class="dropdown-menu" aria-labelledby="dropdown01">
                        <a class="dropdown-item" href="#">Action</a>
                        <a class="dropdown-item" href="#">Another action</a>
                        <a class="dropdown-item" href="#">Something else here</a>
                    </div>
                </li>
            </ul>
            <form class="form-inline my-2 my-lg-0">
                <input class="form-control mr-sm-2" type="text" placeholder="Search" aria-label="Search">
                <button class="btn btn-secondary my-2 my-sm-0" type="submit">Search</button>
            </form>
        </div>
    </nav>

    <main role="main" class="container">

        <div class="starter-template">
            <h1>Bootstrap starter template</h1>
            <p class="lead">Use this document as a way to quickly start any new project.<br> All you get is this text and a mostly barebones HTML document.</p>
        </div>

    </main>

        <!-- Optional JavaScript -->
        <!-- jQuery, Popper.js, and Bootstrap JS -->
        <script src="https://code.jquery.com/jquery-3.5.1.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.1/dist/umd/popper.min.js" integrity="sha384-9/reFTGAW83EW2RDu2S0VKaIzap3H66lZH81PoYlFhbGU+6BZp6G7niu735Sk7lN" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/js/bootstrap.min.js" integrity="sha384-w1Q4orYjBQndcko6MimVbzY0tgp4pWB4lZ7lr30WKz0vr/aWKhXdBNmNb5D92v7s" crossorigin="anonymous"></script>
    </body>
</html>

<h1></h1> 부분을 지운 후 붙여넣기(ctrl+v) 합니다.

HomeController 클래스 만들기

package com.example.layout.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class HomeController {

    @GetMapping
    public String index(){
        return "index";
    }
}

com.example.layout → controller 폴더를 만들고, 이 안에 HomeController 클래스를 만들고 위 코드를 작성합니다.

중간점검 : 실행하기

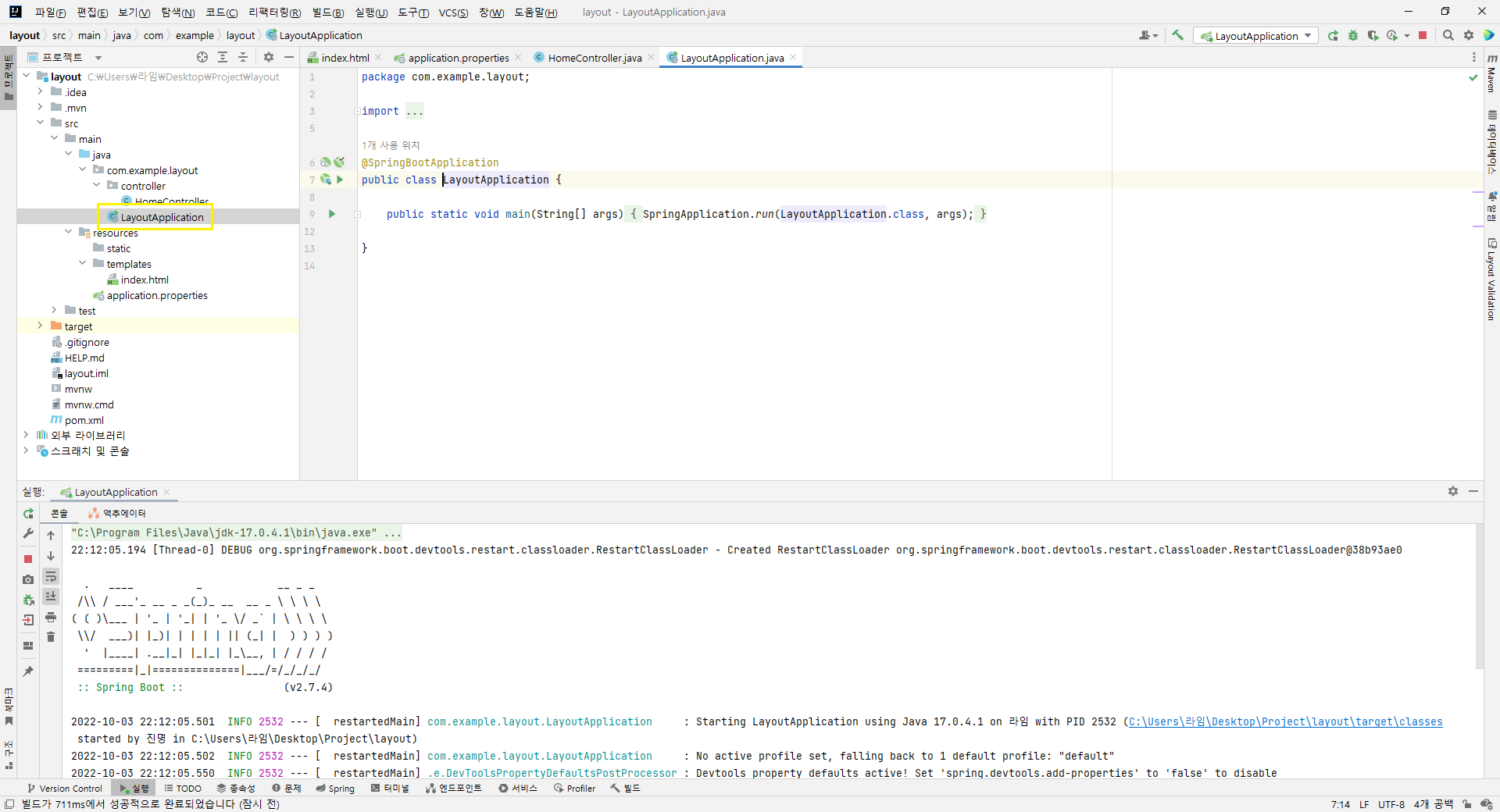

LayoutApplication에 중점을 두고 실행을 한 후 인터넷 브라우저를 실행한 후 localhost:8080 접속합니다.

스타일이 적용되지 않았음을 확인할 수 있습니다.

스타일(<style>) 적용하기

starter template에서 "페이지 소스 보기"를 통해 본 코드에서 블록 씌운 부분을 복사합니다(Ctrl + C).

<!doctype html>
<html>
    <head>
        <!-- Required meta tags -->
        <meta charset="utf-8">
        <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

        <!-- Bootstrap CSS -->
        <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/css/bootstrap.min.css" integrity="sha384-TX8t27EcRE3e/ihU7zmQxVncDAy5uIKz4rEkgIXeMed4M0jlfIDPvg6uqKI2xXr2" crossorigin="anonymous">
        <link href="starter-template.css" rel="stylesheet">

        <title>Hello, world!</title>
    </head>
    <body>
    <nav class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
        <a class="navbar-brand" href="#">Navbar</a>
        <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarsExampleDefault" aria-controls="navbarsExampleDefault" aria-expanded="false" aria-label="Toggle navigation">
            <span class="navbar-toggler-icon"></span>
        </button>

        <div class="collapse navbar-collapse" id="navbarsExampleDefault">
            <ul class="navbar-nav mr-auto">
                <li class="nav-item active">
                    <a class="nav-link" href="#">Home <span class="sr-only">(current)</span></a>
                </li>
                <li class="nav-item">
                    <a class="nav-link" href="#">Link</a>
                </li>
                <li class="nav-item">
                    <a class="nav-link disabled" href="#" tabindex="-1" aria-disabled="true">Disabled</a>
                </li>
                <li class="nav-item dropdown">
                    <a class="nav-link dropdown-toggle" href="#" id="dropdown01" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">Dropdown</a>
                    <div class="dropdown-menu" aria-labelledby="dropdown01">
                        <a class="dropdown-item" href="#">Action</a>
                        <a class="dropdown-item" href="#">Another action</a>
                        <a class="dropdown-item" href="#">Something else here</a>
                    </div>
                </li>
            </ul>
            <form class="form-inline my-2 my-lg-0">
                <input class="form-control mr-sm-2" type="text" placeholder="Search" aria-label="Search">
                <button class="btn btn-secondary my-2 my-sm-0" type="submit">Search</button>
            </form>
        </div>
    </nav>

    <main role="main" class="container">

        <div class="starter-template">
            <h1>Bootstrap starter template</h1>
            <p class="lead">Use this document as a way to quickly start any new project.<br> All you get is this text and a mostly barebones HTML document.</p>
        </div>

    </main>

        <!-- Optional JavaScript -->
        <!-- jQuery, Popper.js, and Bootstrap JS -->
        <script src="https://code.jquery.com/jquery-3.5.1.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.1/dist/umd/popper.min.js" integrity="sha384-9/reFTGAW83EW2RDu2S0VKaIzap3H66lZH81PoYlFhbGU+6BZp6G7niu735Sk7lN" crossorigin="anonymous"></script>
        <script src="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/js/bootstrap.min.js" integrity="sha384-w1Q4orYjBQndcko6MimVbzY0tgp4pWB4lZ7lr30WKz0vr/aWKhXdBNmNb5D92v7s" crossorigin="anonymous"></script>
    </body>
</html>

Head 부분에서 빨간색 네모친 부분에 붙여넣습니다(Ctrl + V).

starter-template.css 부분을 클릭합니다.

body {
    padding-top: 5rem;
}
.starter-template {
    padding: 3rem 1.5rem;
    text-align: center;
}

내용을 복사합니다.(Ctrl + C)

static → starter-templates.css 파일을 만듭니다. 이 후 위에서 복사한 내용을 붙여넣습니다.(Ctrl + V)

이후 프로젝트 빌드를 클릭합니다.

※ templates 폴더 : 서버에서 파일들을 관리하여 바로 접근할 수 없습니다.

※ static 폴더 : 정적인 파일들을 관리하여 바로 접근할 수 있습니다.

스타일 적용 후 중간점검

정상적으로 적용되었음을 확인할 수 있습니다.

내용 변경 후(코드 수정 후) 다시 실행

<!doctype html>
<html lang="en">
<head>
  <!-- Required meta tags -->
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

  <!-- Bootstrap CSS -->
  <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/css/bootstrap.min.css" integrity="sha384-TX8t27EcRE3e/ihU7zmQxVncDAy5uIKz4rEkgIXeMed4M0jlfIDPvg6uqKI2xXr2" crossorigin="anonymous">
  <link href="starter-template.css" rel="stylesheet">
  <title>SUNShower</title>
</head>
<body>
<nav class="navbar navbar-expand-md navbar-dark bg-dark fixed-top">
  <a class="navbar-brand" href="#">SUNShower</a>
  <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarsExampleDefault" aria-controls="navbarsExampleDefault" aria-expanded="false" aria-label="Toggle navigation">
    <span class="navbar-toggler-icon"></span>
  </button>

  <div class="collapse navbar-collapse" id="navbarsExampleDefault">
    <ul class="navbar-nav mr-auto">
      <li class="nav-item active">
        <a class="nav-link" href="#">홈 <span class="sr-only">(current)</span></a>
      </li>
      <li class="nav-item">
        <a class="nav-link" href="#">게시판</a>
<!--      </li>-->
<!--      <li class="nav-item">-->
<!--&lt;!&ndash;        <a class="nav-link disabled" href="#" tabindex="-1" aria-disabled="true">Disabled</a>&ndash;&gt;-->
<!--      </li>-->
<!--      <li class="nav-item dropdown">-->
<!--        <a class="nav-link dropdown-toggle" href="#" id="dropdown01" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">Dropdown</a>-->
<!--        <div class="dropdown-menu" aria-labelledby="dropdown01">-->
<!--          <a class="dropdown-item" href="#">Action</a>-->
<!--          <a class="dropdown-item" href="#">Another action</a>-->
<!--          <a class="dropdown-item" href="#">Something else here</a>-->
<!--        </div>-->
<!--      </li>-->
    </ul>
<!--    <form class="form-inline my-2 my-lg-0">-->
<!--      <input class="form-control mr-sm-2" type="text" placeholder="Search" aria-label="Search">-->
<!--      <button class="btn btn-secondary my-2 my-sm-0" type="submit">Search</button>-->
<!--    </form>-->
  </div>
</nav>

<main role="main" class="container">

  <div class="starter-template">
    <h1>Spring Boot Tutorial</h1>
    <p class="lead">Spring Boot를 이용해 웹 페이지 제작<br> Spring Security, JPA를 이용해 보안 설정과 데이터 다루기</p>
  </div>

</main>

<!-- Optional JavaScript; choose one of the two! -->
<!--Option 2: jQuery, Popper.js, and Bootstrap JS-->
<script src="https://code.jquery.com/jquery-3.5.1.slim.min.js" integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.1/dist/umd/popper.min.js" integrity="sha384-9/reFTGAW83EW2RDu2S0VKaIzap3H66lZH81PoYlFhbGU+6BZp6G7niu735Sk7lN" crossorigin="anonymous"></script>
<script src="https://cdn.jsdelivr.net/npm/bootstrap@4.5.3/dist/js/bootstrap.min.js" integrity="sha384-w1Q4orYjBQndcko6MimVbzY0tgp4pWB4lZ7lr30WKz0vr/aWKhXdBNmNb5D92v7s" crossorigin="anonymous"></script>

</body>
</html>

홈, 게시판만 메뉴를 만들기 위해 주석처리 하였습니다. 주석 처리는 (Ctrl + /) 누르면 자동으로 할 수 있습니다.

※ 주석처리는 각각 Disabled, Dropdown, 검색창을 하였습니다.

참고자료

https://getbootstrap.com/docs/4.5/getting-started/introduction/

Introduction

Get started with Bootstrap, the world’s most popular framework for building responsive, mobile-first sites, with jsDelivr and a template starter page.

getbootstrap.com

https://www.youtube.com/watch?v=WGIJ4CDUX44&list=PLPtc9qD1979DG675XufGs0-gBeb2mrona&index=4
